The DSF40 is a high-precision battery

New

-21%

The DSF40 is a high-precision battery

In Stock (58 items)

~~₹97,000.00~~ ₹77,000.00

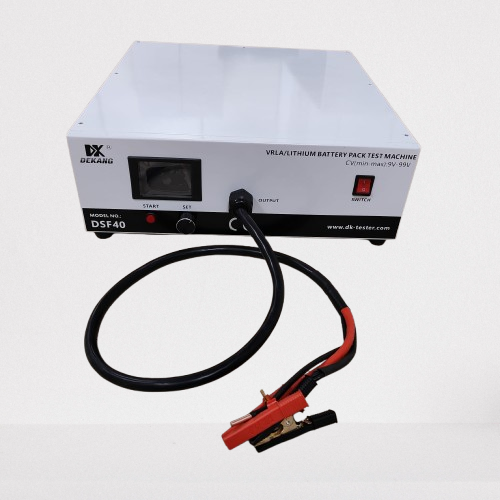

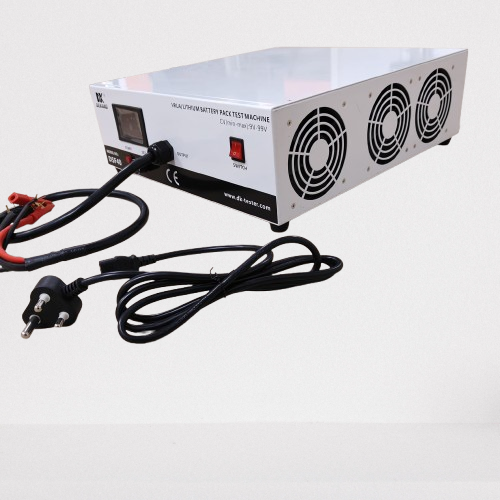

The DSF40 is a high-precision battery tester designed for comprehensive charge and discharge analysis of lithium-ion and lead-acid battery packs. With a wide voltage detection range from 9V to 99V and adjustable current settings up to 40A, it caters to various battery configurations, making it ideal for electric vehicle manufacturers, battery pack assemblers, and R&D laboratories. Read more

Brand: JBD

Categories: Industrial & Construction / Supplies / Specialty Tapes

Tags: BATTERY TESTERS DSF40(DK)DSF40V40AMP (7e6a) | ARB ACCESSORIES

SKU: #85079090

Wishlist

Descriptions
Specifications

Key Features

Voltage Range: 9V to 99V
Charge Current: 0.5A to 20A adjustable
Discharge Current: 0.5A to 40A adjustable
Operation Modes: Panel and Software control
Communication Port: LAN (TCP/IP protocol)
Input Power: AC 220V ±10%, 50Hz/60Hz
Display: High-definition LCD screen
Data Output: Excel format
Software Compatibility: Windows XP, 7, 8, 10
Cycle Index: 1 to 16 times
Protection Features: Power-down protection, reverse connection, over-temperature, over-voltage, short-circuit protection
Temperature Monitoring: Real-time battery temperature monitoring with automatic shutdown and alarm
Noise Level: <76 dB
IP Grade: IP20
Dimensions: 45 x 48 x 16 cm
